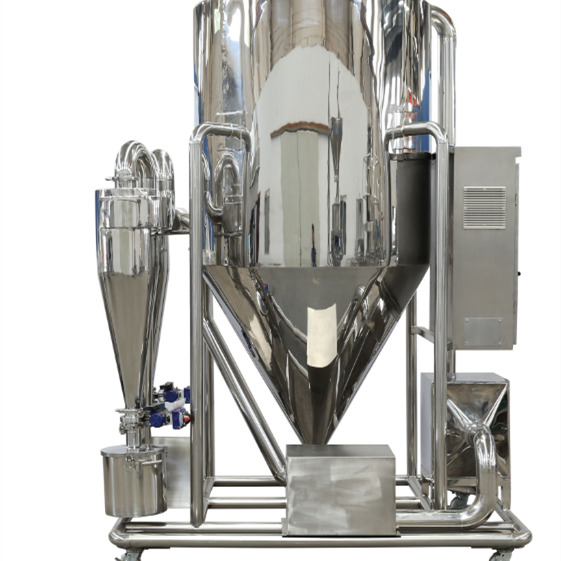

Energy Saving Large Scale Height Coffee Dryer Stainless Steel Spray Dryer

1 Set
MOQ
$10,000.00(>=1 Sets)
prezzo
Energy Saving Large Scale Height Coffee Dryer Stainless Steel Spray Dryer
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 220V
Power: 7kw
Dimension(L*W*H): 800*800*1000mm
Key Selling Points: Energy saving
Warranty: 1 Year
Weight (KG): 5000
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: India, Spain
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine, Pressure vessel, Other
Evaporation Capacity(kg/h): 150
Heating Method: Electric Heating
Material: SUS304, SUS316
Product name: stainless steel spray dryer
Color: Silver
Application material: Wide Application
Feature: Saving Energy
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: India, Spain
Certificazione: ISO9001
Informazioni di base
Certificazione: ISO9001
Termini di pagamento e spedizione
Packaging Details: With plastic film and wooden box or as per customer's requirement
Supply Ability: 50 Set/Sets per Month
Descrizione di prodotto
Product Overview

LGP Series High-speed Centrifugal Spray Dryer

Spray drying is the most widely used technology in liquid shaping and drying industry.Which is the most suitable for producing solid power or particle products from liquid material such as solution,emulsion,suspension and pumpable paste states.So if you want Particle size distribution,Residual moisture content,Bulk density and Particle shape must meet the precise standard,the spray drying is the best choice
FEATURES AT A GLANCE
The air enters into the air distributor on the top of the dryer after filtered and heated.The hot air enters into the drying room spirally and uniformly.The solution will spay into tiny mist liquid go through the high-speed centrifugal sprayer on the top of the tower.Through the very short time of contacting the heart air, the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones.Exhaust gas discharged by fan.

Chemical industry
Food industry
Sugars

Main technical design

1.Atomizing way: Centrifugal atomizing or pressure atomizing

2.Air - filtering system
Pre & Middle air filter and HEPA
3.Input system: Adjustable Screw or mono Pump
4.Heating way: Electric, natural gas or other heating way 5.Dust exhaust system: Cyclone separater×2 + water film duster or pulse bag filter 6.Collect product system: Discharge interminately by Cyclone separater and Main tower chamber 7.Control system: The atomizer is adjusted stably by frequency conversion control; inlet and outlet temperature inside can be set up precisely. PLC control . Touch screen
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Application
(1)Chemical industry:NaF(KF)、Basic dye pigment、Dye intermediates、Compound fertilizer、Formaldehyde silicic acid、catalyzer、Sulphuric acid、amino acid、Silica etc. (2)Plastic resin：AB，ABS emulsion、urea resin、phenolic resin、Melamine formaldehyde resin、polyethylene、polyvinyl chloride etc. (3)Food industry：Fat rich milk powder、Prion、Cocoa milk powder、Milk replacer、Blood powder、Egg white etc. (4)Food and plants：oats、broth prepared by steaming chicken、Coffee、Instant tea、Spiced meat、protein、soybean、Peanut protein、Hydrolysate etc. (5)Sugars:Corn syrup、corn starch、glucose、pectin、malt dust、Potassium sorbate etc. (6)Ceramics：alumina、Ceramic tile material、magnesium oxide、talc etc.
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
1.Can I use this machine to extract some raw materials? Yes, in order to help you better, we suggest you provide the name of the raw material you want to process. 2.Can I use my own raw materials for extraction test? Yes, of course. We can do extraction tests and send videos and test reports for your reference. 3.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 4.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 5.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 6.What is the voltage of the equipment? The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used. 7.what is your after-sales service? We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
